160x90x80mm light gray waterproof plastic electronic enclosures for project

China 160x90x80mm light gray waterproof plastic electronic enclosures for project supplier
160x90x80mm light gray waterproof plastic electronic enclosures for project supplier 160x90x80mm light gray waterproof plastic electronic enclosures for project supplier

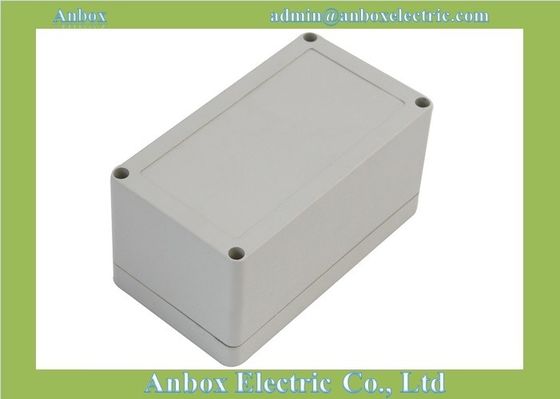

Large Image :  160x90x80mm light gray waterproof plastic electronic enclosures for project

Product Details:

Place of Origin: China
Brand Name: Anbox
Certification: CE
Model Number: 160C-1

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: $2~$4
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description

160x90x80mm light gray waterproof plastic electronic enclosures for project



Features:



  1. Designed to IP65 of IEC60529.
  2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  3. Captive steel screws thread into brass inserts for cover on/cover off applications
  4. Plastic PCB mounting bosses are standard
  5. Durable, high impact ABS, PC raw material
  6. The Min.average wall thickness is 3mm
  7. Gray cover and transparent cover are available
  8. Assembly includes base, gasket, cover, and 4 steel enclosure screws
  9. Custom requirements are available.
  10. Accept OEM order as per your design.





Specifications:



Model No. 160C-1
External Size 160*90*80mm
Net weight 200g
Protection Level IP65
Material ABS, PC, Flame retardant, UV stabilized
Flame rating UL 94-HB, UL94-V2, UL94-V0, UL94-5VA
Temperature Range -20°C~80°C(ABS), -40°C~100°C (PC)
Impact resistant IK07(ABS), IK08(PC)



Drawing reference

(might have tolerance)



160x90x80mm light gray waterproof plastic electronic enclosures for project
