Home Productsplastic waterproof junction box wall mount

83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical

I'm Online Chat Now

83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical

China 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier
83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier 83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical supplier

Large Image :  83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical

Product Details:

Place of Origin: China
Brand Name: AnBox
Certification: CE
Model Number: 83A-13

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $1~$10
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
External Size: 83*58*33mm Protection Level: IP65
Type: Junction Box Material: ABS
Color: Grey Wall Thinkness: About 3mm
OEM: Available Lead Time: 7 Days
Packing: Pp Bag For Each Box, Several Boxes To A Carton Shipping: DHL/UPS/TNT/Fedex/China Post/sea/etc.
Payment: Western Union, T/T

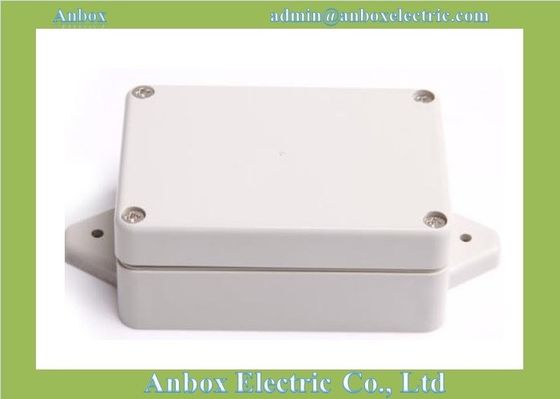

83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical



Specifications

1, Model:83A-13

2,Material: ABS

3, Color: Grey

4, Weatherproofing via user-fitted O-ring (supplied)

5, Size:83*58*33mm

6, Assembly screws included.

7, Multi-directional mounting feet



Reference Drawing



83*58*33mm IP65 Wall Mount Cases & Case Enclosures for Electronical



Other sizes



P.N Model No. Size
with wall mounting
1 63A-13 63*58*35
2 76A-13 76*70*38
3 83A-13 83*58*33
4 100A-13 100*68*40
5 100B-13 100*68*50
6 115A-13 115*85*35
7 115B-13 115*90*55
8 115C-13 115*90*68
9 120A-13 120*81*65
10 125A-13 125*100*52
11 145A-13 145*120*60
12 158A-13 158*90*46
13 158B-13 158*90*64
14 160A-13 160*90*80
15 160B-13 160*100*56
16 160C-13 160*110*96
17 160D-13 160*160*90
18 180A-13 180*150*70
19 192A-13 192*100*45
20 192B-13 192*100*62
21 192C-13 192*188*70
22 200A-13 200*120*67
23 200B-13 200*120*75
24 200C-13 200*120*113
25 215A-13 215*185*85
26 230A-13 230*150*87
27 255A-13 255*230*100
28 300A-13 300*270*110
29 320A-13 320*240*110
30 330A-13 330*300*90
