10811275mm Fireproof Din Rail Enclosure For Industry Instrument Enclosure Control Box

Large Image : 108*112*75mm Fireproof Din Rail Enclosure For Industry Instrument Enclosure Control Box

Product Details:

Place of Origin:	China
Brand Name:	AnBox
Certification:	ROHS
Model Number:	BRT80009

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD10.8
Packaging Details:	cartons
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1000pcs / day

Contact Now

Detailed Product Description

External Size:	10811275mm	Operating Temperature:	-20°C~80°C
Application:	Industrial Control Shell	Material:	Fire Retardant ABS
FIRE RESISTANCE LEVEL:	UL 94 V0	Color:	Light Grey
Highlight:	Fireproof Din Rail Enclosure , 75mm Fireproof Din Rail Enclosure

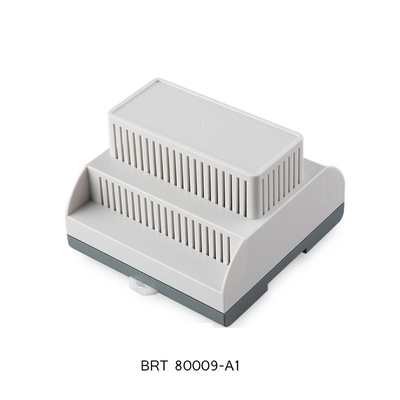

**10811275mm High Quality Fireproof Material Din Rail Enclosure For Industry Instrument Enclosure Control Box**

Product Description

100 % ABS FR Flame Retardant UL94V-0 plastic material.

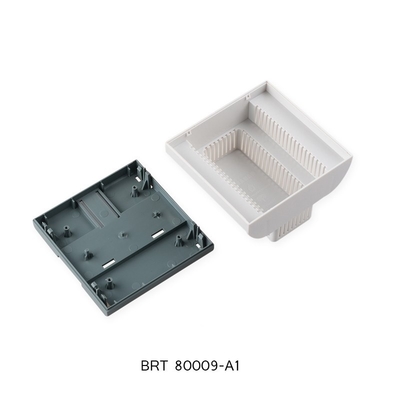

Equipped with cover and side baffle plate.
All accessories are packaged in small plastic bags.
Customization service on request: drilling, changing the colour.
Can be installed on the standard dia rail.
Cutouts, laser, printing can be custom-made as customer's requirement.

Product name	Din rail plastic enclosure
Products model	BRT80009

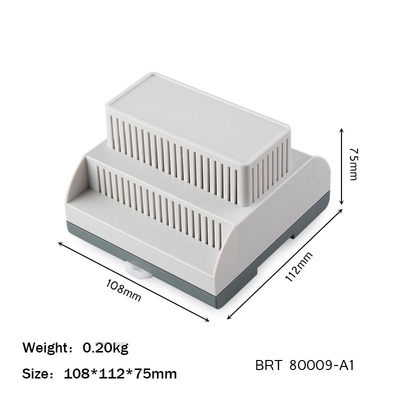

Product specification	10811275mm [ 4.254.412.95inch ]

Material	abs raw material
Net weight	119g
Flame retardant grade	UL 94 V0
Application	Electronic & Instrument Enclosures
Costom service	color, cut holes, print ,open new mold. etc

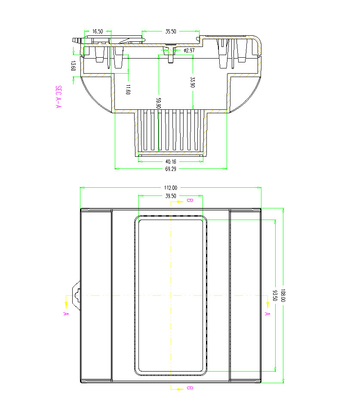

Drawing

108*112*75mm Fireproof Din Rail Enclosure For Industry Instrument Enclosure Control Box
