17413957mm Plastic Control Box PLC Enclosure Din Rail ABS Fireproof DIY PCB Shell

Large Image : 174*139*57mm Plastic Control Box PLC Enclosure Din Rail ABS Fireproof DIY PCB Shell

Product Details:

Place of Origin:	China
Brand Name:	AnBox
Certification:	ROHS
Model Number:	BRT80008

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD10.8
Packaging Details:	cartons
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1000pcs / day

Contact Now

Detailed Product Description

External Size:	17413957mm	Operating Temperature:	-20°C~80°C
Application:	Industrial Control Shell	Material:	Fire Retardant ABS
FIRE RESISTANCE LEVEL:	UL 94 V0	Color:	Light Grey
Highlight:	57mm Plastic Control Box PLC Enclosure , Din Rail PLC Enclosure , ABS Fireproof DIY PCB Shell

**17413957mm Plastic Industrial Control Box PLC Enclosure Housing Din Rail ABS Fireproof Material DIY PCB Shell**

Products:

Product name : plastic din rail enclosure
Products model : BRT80008

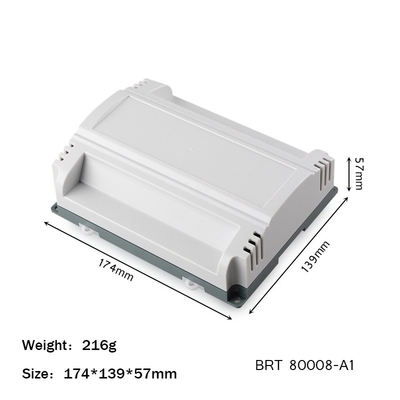

Product specification : 174*139*57mm [6.85*5.47*2.24inch ]
Material: ABS fire-proof body(-25～80°C) + PC flat lens(-60～120°C)
Material and color can custom-make

[Product characteristics :]

1 , With independent packaging box and carton.
2 , With independent side plate.
3 , With transparent PC flat lens.
4 , The material is brand new fire-proof raw material.
5 , Can be installed on the standard dia rail.
6 , Cutouts, openings and silkscreen can be custom-made as customer's requirement.

[main usage :]

Din rail enclosures have differnt names because of regional differences and uasge difference. For the industry,control box, instrument case,electronic products shell are mainly used.The portable instrument box is mainly used in the following indoor and outdoor fields:electrical, communications, fire control facilities, steel smelting, electronics, electric power, railway, construction sites, mines, airports, hotels, large factories, environmental hazards facilities, etc.

Product name	Din rail plastic enclosure
Products model	BRT80008
Product specification	17413957mm [6.855.472.24inch]

Material	abs raw material
Net weight	113g
Flame retardant grade	UL 94 V0
Application	Electronic & Instrument Enclosures
Costom service	color, cut holes, print ,open new mold. etc

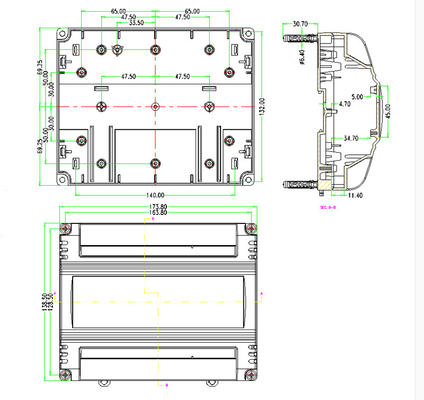

Drawing

174*139*57mm Plastic Control Box PLC Enclosure Din Rail ABS Fireproof DIY PCB Shell
