Product Details:
Payment & Shipping Terms:
|
Application: | Electric | Type: | Waterproof Box |
---|---|---|---|
Color: | Gray | Temperature Range: | -40℃ To 80℃ |

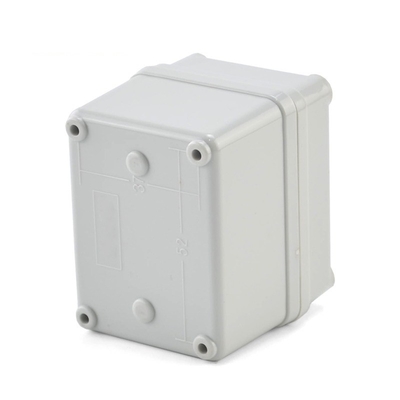

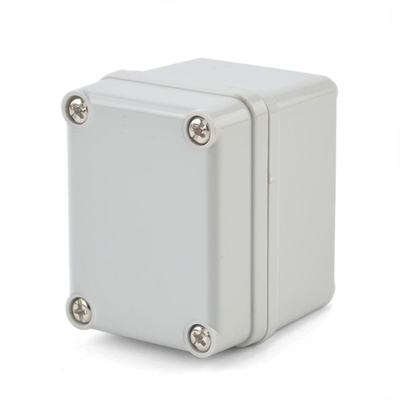

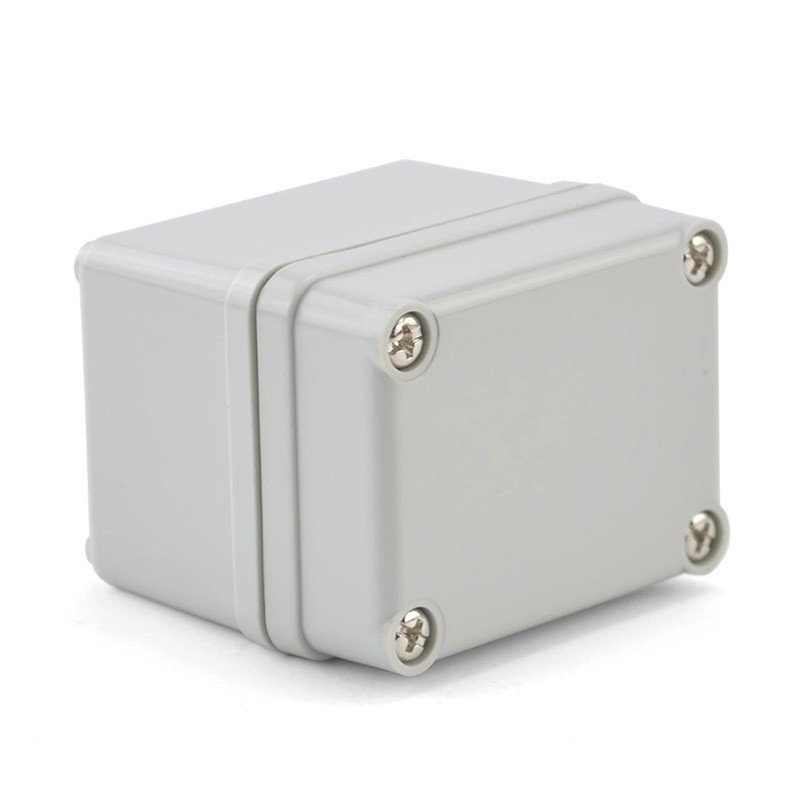

Function: | Install Circuit Board | Name: | Waterproof Plastic Enclosure Box |
Highlight: | 65x50x55 Mm CCTV Junction Box,Plastic CCTV Junction Box IP66,55mm Plastic Screws Waterproof Enclosure Box |
Product Description
Model Number | 65A-1 |
External size | 65*50*55mm |
Material | ABS, 100% raw material |
Protection Level | IP66 |
colour | Grey, can be customzied |

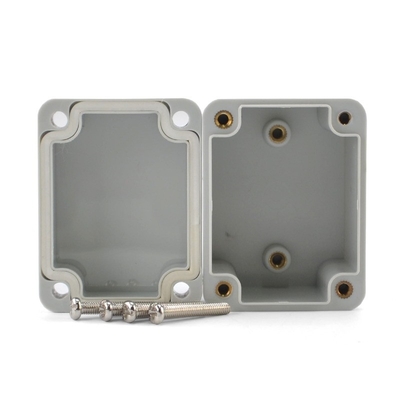

component | enclosure, gasket, screws |
MOQ | 1PC |
OEM/ODM | cut holes, print logo, develop new enclosure as per your design |
Lead time | 3-15days for different order |
Delivery terms | FEDEX/TNT/UPS/DHL/China air post/ Sea,etc. |
Payment terms | T/T,Paypal,Western Union |
1) Appearance for junction box : Injection mold ABS enclosure, made from 100% new imported material, built in rib reinforcement, which is well designed,anti distortion, waterproof, dust-proof and insulated ,with longer service life.

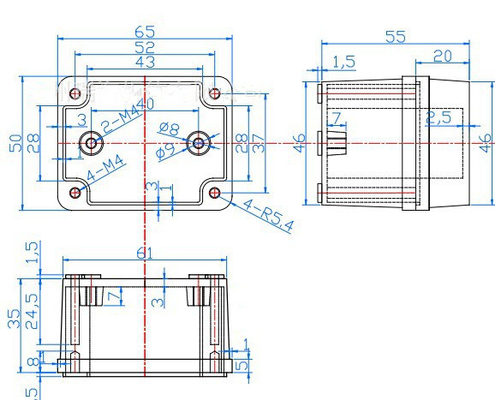

W*H*D | W1 | W2 | W3 | H1 | H2 | H3 | h4 | D1 | D2 |
50*65*55 | 50 | 43 | 38 | 65 | 58 | 53 | 39.8 | 35 | 20 |
65*95*55 | 65 | 58 | 47 | 95 | 88 | 77 | 40 | 15 | |
80*110*45 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 25 | 20 |
80*110*70 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 55 | 15 |
80*110*85 | 80 | 73 | 62 | 110 | 103 | 92 | 80 | 55 | 30 |
80*130*70 | 80 | 73 | 62 | 130 | 123 | 112 | 100 | 55 | 15 |
80*130*85 | 80 | 73 | 62 | 130 | 123 | 112 | 100 | 55 | 30 |
80*180*70 | 80 | 73 | 62 | 180 | 173 | 162 | 150 | 50 | 20 |
80*180*85 | 80 | 73 | 62 | 180 | 173 | 162 | 150 | 50 | 35 |
80*250*70 | 80 | 73 | 62 | 250 | 243 | 232 | 220 | 50 | 20 |
80*250*85 | 80 | 73 | 62 | 250 | 243 | 232 | 220 | 50 | 35 |
100*100*75 | 100 | 93 | 82 | 100 | 93 | 82 | 60 | 55 | 20 |
125*125*75 | 125 | 118 | 107 | 125 | 118 | 107 | 70 | 55 | 20 |
125*125*100 | 125 | 118 | 107 | 125 | 118 | 107 | 70 | 80 | 20 |
125*175*75 | 125 | 118 | 107 | 175 | 168 | 157 | 140 | 60 | 15 |
125*175*100 | 125 | 118 | 107 | 175 | 168 | 157 | 140 | 60 | 40 |
140*170*95 | 140 | 132 | 122 | 170 | 162 | 152 | 130 | 75 | 20 |
150*200*75 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 55 | 20 |
150*200*100 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 80 | 20 |
150*200*130 | 150 | 142 | 132 | 200 | 192 | 182 | 160 | 80 | 50 |
175*175*75 | 175 | 167 | 157 | 175 | 167 | 157 | 140 | 50 | 25 |
175*175*100 | 175 | 167 | 157 | 175 | 167 | 157 | 140 | 50 | 50 |
200*200*95 | 200 | 192 | 182 | 200 | 192 | 182 | 159.5 | 75 | 20 |
200*200*130 | 200 | 192 | 182 | 200 | 192 | 182 | 159.5 | 110 | 20 |
