External Size: | 250*150*130mm | Protection Level: | IP65 |
---|---|---|---|
Type: | Junction Box | Material: | ABS PC |
Color: | Grey , Transparent | Wall Thinkness: | About 3mm |
OEM: | Available | Lead Time: | 7 Days |
Packing: | Pp Bag For Each Box, Several Boxes To A Carton | Shipping: | DHL/UPS/TNT/Fedex/China Post/sea/etc. |
Payment: | Western Union, T/T | ||
Highlight: | 250*150*130mm Clear Lid Enclosures,IP66 Clear Lid Enclosures,AnBox plastic enclosure box |
250*150*130mm IP66 Square Clear Lid Plastic Enclosures & Boxes For Electronics
1, Model:250D-2
2,Material: ABS, PC
3, Color: Gray with clear cover
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH)
6, Assembly screws included.
7, Multi-directional mounting feet
Features
1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-40℃ to 80℃
4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc ,
9. Your design is welcome

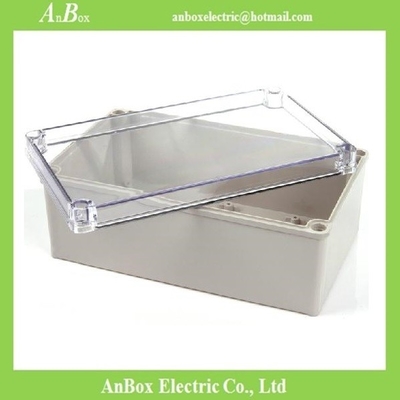

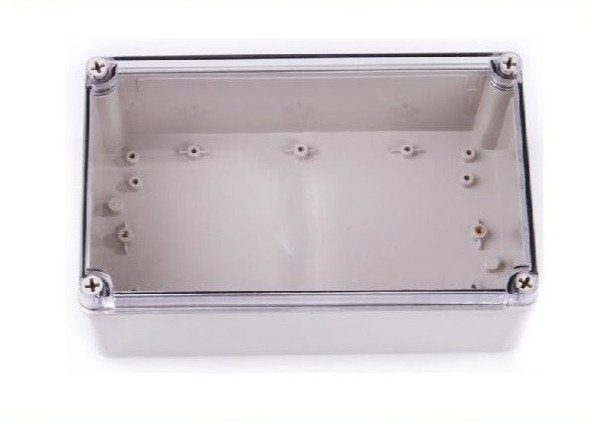

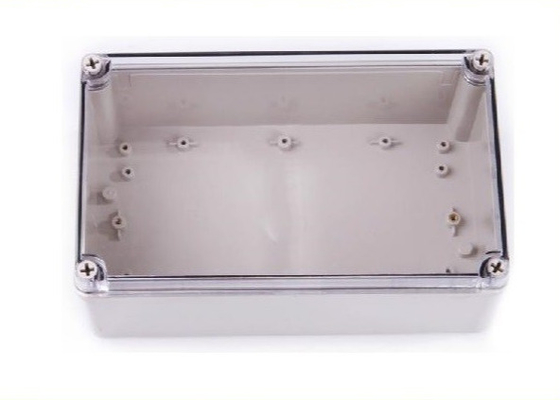

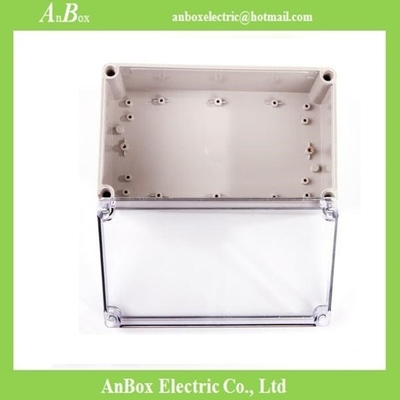

Detailed pictures
Reference drawing
More sizes
P.N | Model No. | Dimension |
1 | 63A-2 | 63*58*35 |
2 | 83A-2 | 83*58*33 |
3 | 83B-2 | 83*81*56 |
4 | 95A-2 | 95*65*55 |
5 | 96A-2 | 96*96*60 |
6 | 100A-2 | 100*68*50 |
7 | 110A-2 | 110*80*45 |
8 | 110B-2 | 110*80*70 |
9 | 110C-2 | 110*80*85 |
10 | 115A-2 | 115*90*55 |
11 | 120A-2 | 120*120*90 |
12 | 125A-2 | 125*125*75 |
13 | 125B-2 | 125*125*100 |
14 | 130A-2 | 130*80*70 |
15 | 130B-2 | 130*80*85 |
16 | 145C-2 | 145*145*90 |
17 | 158B-2 | 158*90*40 |
18 | 158A-2 | 158*90*60 |
19 | 160A-2 | 160*45*55 |
20 | 160B-2 | 160*80*55 |
21 | 160C-2 | 160*110*90 |
22 | 160E-2 | 160*160*90 |
23 | 170A-2 | 170*120*100 |
24 | 170B-2 | 170*140*95 |
25 | 175A-2 | 175*125*75 |
26 | 175B-2 | 175*125*100 |
27 | 180A-2 | 180*80*70 |
28 | 192B-2 | 192*188*100 |
29 | 200A-2 | 200*120*56 |
30 | 200B-2 | 200*120*75 |
31 | 200C-2 | 200*120*113 |
32 | 200D-2 | 200*200*95 |
33 | 200F-2 | 200*200*130 |
34 | 230A-2 | 230*150*87 |
35 | 240A-2 | 240*160*90 |
36 | 240B-2 | 240*160*120 |
37 | 250A-2 | 250*80*70 |
38 | 250B-2 | 250*80*85 |
39 | 250C-2 | 250*150*100 |
40 | 250D-2 | 250*150*130 |
41 | 263A-2 | 263*182*60 |
42 | 263B-2 | 263*182*95 |
43 | 263C-2 | 263*182*125 |
44 | 280A-2 | 280*190*130 |
45 | 290A-2 | 290*210*60 |
46 | 290B-2 | 290*210*100 |
47 | 300A-2 | 300*280*140 |
48 | 320A-1 | 320*240*60 |
49 | 320A-2 | 320*240*110 |
50 | 320B-2 | 320*240*140 |
51 | 380A-2 | 380*260*85 |
52 | 380B-2 | 380*260*105 |
53 | 380C-2 | 380*260*120 |
54 | 380D-2 | 380*260*140 |
