Product Details:
Payment & Shipping Terms:
|
| Standard: | DIN | Grade: | Steel |
|---|---|---|---|
| Length: | Customized | Thickness: | 0.8mm |
| Weight: | 0.12KG/M | Size: | W15mm*H5.5mm |
| Application: | Guide Rail, For Circuit Breaker | ||
| Highlight: | 15mm Steel Mounting DIN Rail,TH15-5.5,5.5mm Steel Mounting DIN Rail |
||

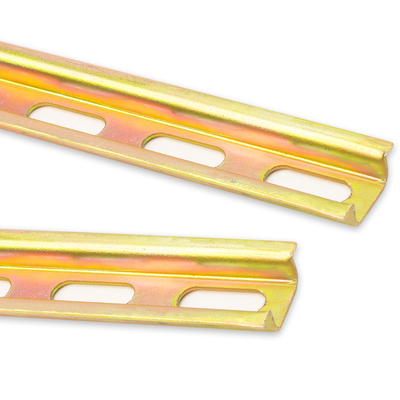

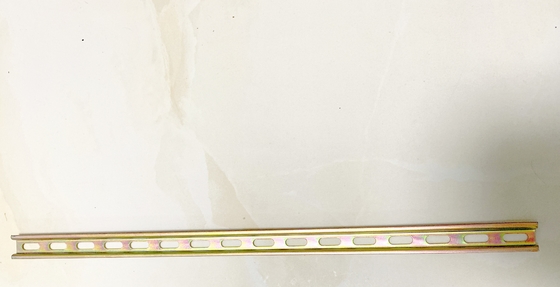

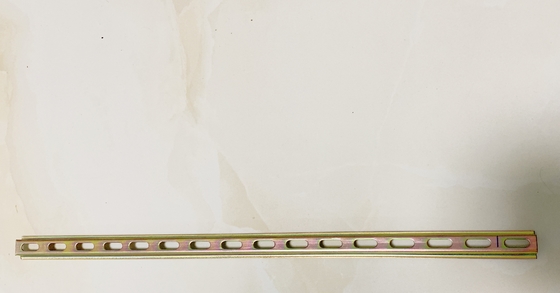

Universal Cutomize Length Steel Mounting DIN Rail TH15-5.5 Width 15mm Height 5.5mm
DIN Rail U Type 15*5.5mm
Width 15mm
Height 5.5mm
Length 1 meter or customized
Zinc-bichromate cold rolled electrolitically plated steel DIN rail
DESCRIPTION:
1)It's made from carbon constructional steel plate and passivated by yellow chrome acid after zincification which led to a good rigidity and accurate size.
2)The standard lengths of 15x5.5 DIN Rail are 1m, customized length is also available.
3)15x5.5 DIN Rail is suitable to install breaker, contactor, surge protector, relay, connecting terminal, PLC, module socket, module electric appliance and favorable to circuit design of electric appliance and maintenance . It will improve the installation speed and lower the manufacturing cost and use-cost.
4)It can be installed in various jack boxes, control cabinets, and switch cabinets.
