Product Details:
Payment & Shipping Terms:
|
| Item: | Extruded Aluminum Enclosure | Color: | Matt Black And Silver, Can Be Customized |
|---|---|---|---|
| External Size: | 204*48*150mm, Length Can Be Changed | Material: | Aluminum 6063 |
| Type: | Aluminum Cooling Case | Surface Treatment: | Anodized And Sandblasting |
| Application: | Electronic Projects Like Switch/converter, Power Supply Units, Audio Amplifier Projects, Ham Radio Projects,etc | Custom Service: | Cutouts, LOGO, Laser, Etc. |

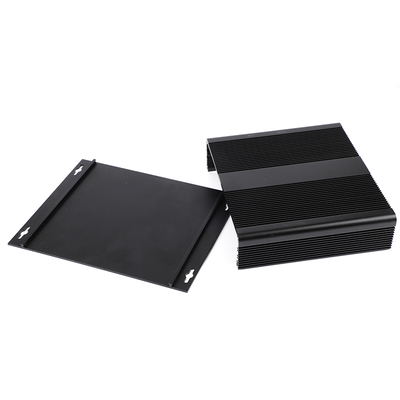

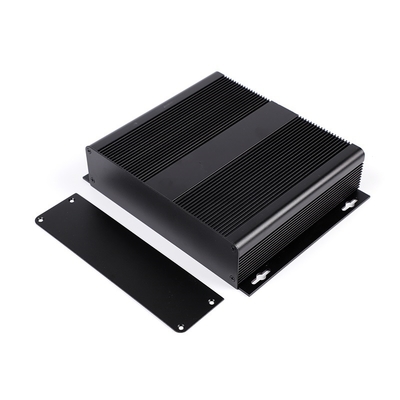

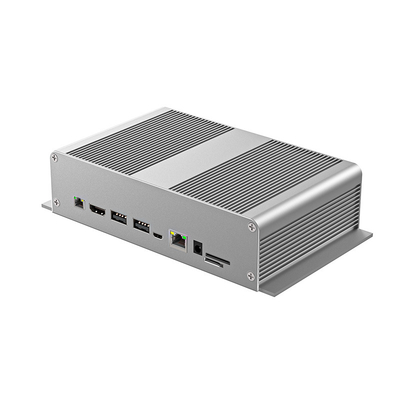

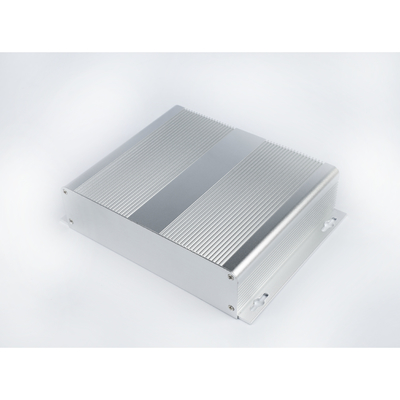

204x48x150mm Extruded Large Aluminum Enclosure With Heatsink Sides In Black Silver Color
This Extruded Aluminum cooling case size is 204*48*150mm, Length can be changed, with anodized sandblasting surface finish and black color in stock, other surface such as brushed and colors can be customized, this heatsink cooling case is suitable to fit Width 172mmm Printed Circuit Boards.
The sliding cover design allows the top part of the extrusion slides smoothly, easy to access inside to mount parts or components
This heat sink case made of extruded aluminum AL6063, it has excellent electromagnetic shielding performance, good heat dissipation performance.
This extruded electronic Aluminum Enclosure are widely use for instrument, electric power,telecommunication, radio and television, medical device,network, hotel and military supply.
Description for this Aluminum heatsink case
Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure
| Model NO. | E18048 |
| Structure | Split body Aluminum Enclosure |
| Outer Size | 204*48*150mm (W*H*L) L can be change |
| PCB width | 172mm |
| Surface treatment | Anodized |
| Color | Black, silver, can be customized |
| Components | The top and bottom halves aluminum enclosure, end plates, and self-tapping screws |
| Material | Extrusion Aluminum 6063 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
