External Size: | 200*200*130mm | Protection Level: | IP66 |
---|---|---|---|
Type: | Junction Box | Function: | Waterproof, Dustproof |
Lock: | With Screws | Usage: | Electric Industry |
Highlight: | 200*200*130mm Clear Lid Enclosures,Ip66 Clear Lid Enclosures,AnBox clear cover box |
200*200*130mm ip66 Waterproof Clear Cover Plastic Enclosure Junction Box
Features
Multiple Install methods:
1, Fix the boxes to the designated location directly through the screws
2, Install hangers, make it flexible and convenient to install on the places needed
Seal Ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion,
maing much better waterproof and longer lifetime
Erection Column
Setted with several bosses inside of the box,
very convience to install the PCB,DIN Rail, etc.
Brass thread inserts
We molded the brass thread inserts into the enclosure, make the box fit better.
Wall mounting ears
With the wall mounting ears, you can install the box onto the wall directly, Improve the efficiency
Specifications
1, Model:200E-2
2,Material: ABS, PC for lid
3, Color: Grey, transparent (lid)
4, Components: Lid, base, O-ring, screws.
5, Size:200*200*130mm
6, MOQ:1pc
More sizes
P.N | Model No. | Dimension |
1 | 63A-2 | 63*58*35 |
2 | 83A-2 | 83*58*33 |
3 | 83B-2 | 83*81*56 |
4 | 95A-2 | 95*65*55 |
5 | 96A-2 | 96*96*60 |
6 | 100A-2 | 100*68*50 |
7 | 110A-2 | 110*80*45 |
8 | 110B-2 | 110*80*70 |
9 | 110C-2 | 110*80*85 |
10 | 115A-2 | 115*90*55 |
11 | 120A-2 | 120*120*90 |
12 | 125A-2 | 125*125*75 |
13 | 125B-2 | 125*125*100 |
14 | 130A-2 | 130*80*70 |
15 | 130B-2 | 130*80*85 |
16 | 145C-2 | 145*145*90 |
17 | 158B-2 | 158*90*40 |
18 | 158A-2 | 158*90*60 |
19 | 160A-2 | 160*45*55 |
20 | 160B-2 | 160*80*55 |
21 | 160C-2 | 160*110*90 |
22 | 160E-2 | 160*160*90 |
23 | 170A-2 | 170*120*100 |
24 | 170B-2 | 170*140*95 |
25 | 175A-2 | 175*125*75 |
26 | 175B-2 | 175*125*100 |
27 | 180A-2 | 180*80*70 |
28 | 192B-2 | 192*188*100 |
29 | 200A-2 | 200*120*56 |
30 | 200B-2 | 200*120*75 |
31 | 200C-2 | 200*120*113 |
32 | 200D-2 | 200*200*95 |
33 | 200F-2 | 200*200*130 |
34 | 230A-2 | 230*150*87 |
35 | 240A-2 | 240*160*90 |
36 | 240B-2 | 240*160*120 |
37 | 250A-2 | 250*80*70 |
38 | 250B-2 | 250*80*85 |
39 | 250C-2 | 250*150*100 |
40 | 250D-2 | 250*150*130 |
41 | 263A-2 | 263*182*60 |
42 | 263B-2 | 263*182*95 |
43 | 263C-2 | 263*182*125 |
44 | 280A-2 | 280*190*130 |
45 | 290A-2 | 290*210*60 |
46 | 290B-2 | 290*210*100 |
47 | 300A-2 | 300*280*140 |
48 | 320A-1 | 320*240*60 |
49 | 320A-2 | 320*240*110 |
50 | 320B-2 | 320*240*140 |
51 | 380A-2 | 380*260*85 |
52 | 380B-2 | 380*260*105 |
53 | 380C-2 | 380*260*120 |
54 | 380D-2 | 380*260*140 |

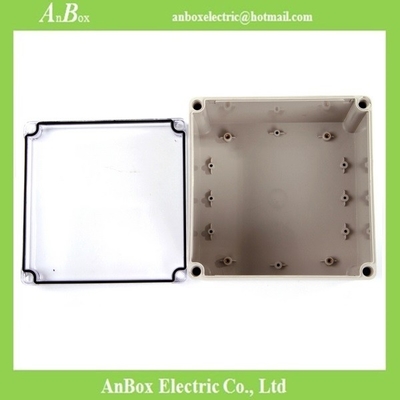

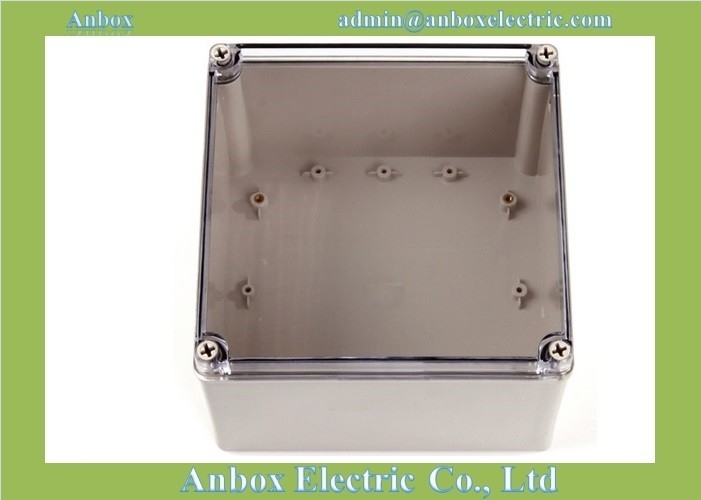

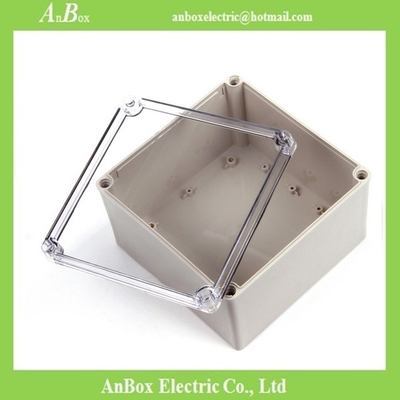

Detailed pictures
More Types of Plastic Waterproof box
Solid waterproof box
Clear cover waterproof box
Wall mount waterproof box
Clear cover wall mount waterproof box
Custom Services
1, Change Color, Materail to PC or flame retardant
2, Drill holes
3, Silk Screen
4, Install terminal block
5, Connecting cable gland
6, Install metal/plastic wall mount
7, Developing new moulds
